Main Features





• Weight: 830~1000kg or on request

• Power Source: 380V50Hz or on request

• Operating temperature: -40°C to +70°C

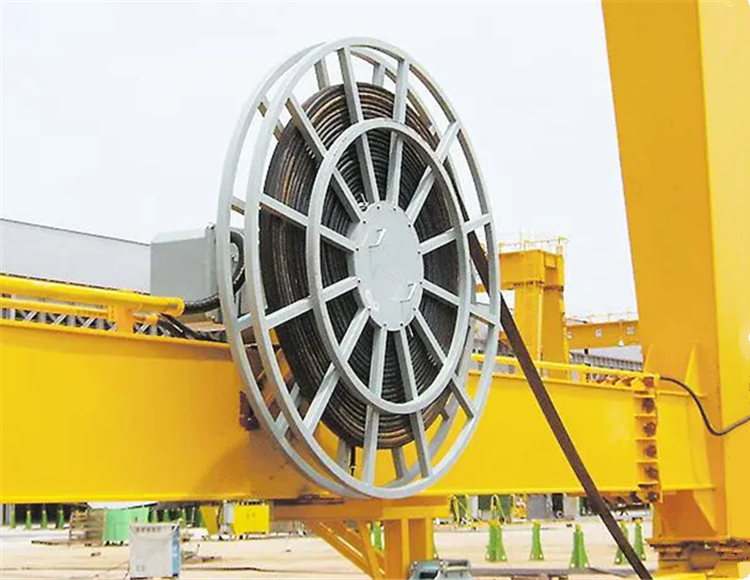

Cable reel, also known as cable reel or cable reel, is a mainstream solution in the field of mobile transmission (power, data and fluid media) due to its features such as small installation space, convenient maintenance, reliable use and low cost. According to the driving form, the cable reel can be divided into non-electric type and electric type.According to the arrangement of cables, it can be divided into two types: axial single row and axial multiple row.According to the position of the collector slip ring, it is divided into two forms: inner slip ring type and outer slip ring type.According to the winding material is divided into cable reel and hose reel.The non-electric type includes: elastic force (TA) type, heavy hammer (ZC) type, magnetic coupling type (JQC);The electrodynamic type includes: magnetic coupling type (JQD), torque motor type (KDO), hysteresis type (CZ) and frequency conversion control type (BP).
