Semi-Gantry Crane
放大

返回



旋转

×
×

Semi-Gantry Crane

描述
政策
报价

Main Features



• Capacity: 1t~32t, can be 2 hoist or more

• Span (rail gauge): 5m~35m, customized

• Lifting height: 5m to 35m, customized

• Class:  European design A5, option A3

• Powered via cable reel or diesel generator

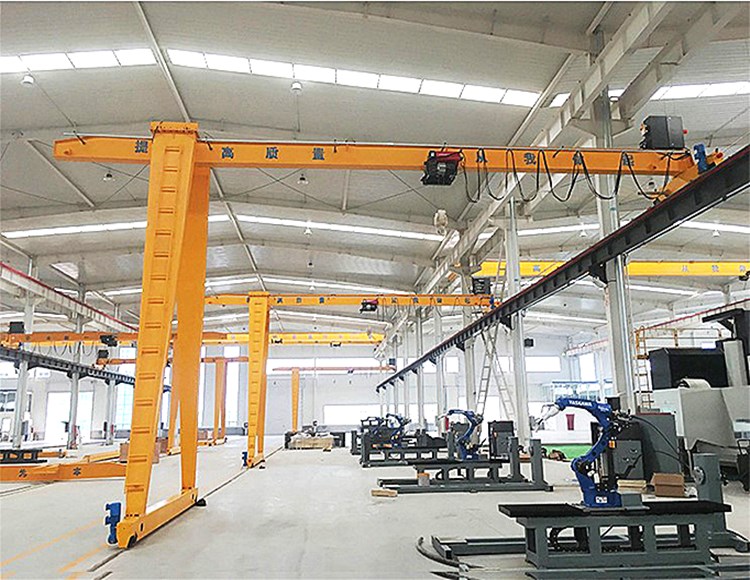

Semi-gantry Crane has a special design structure to suit various crane work situation. It can be single girder and double girder, the two ends connections are different, one side is connected and supported by the crane gantry leg travel on the ground mounted rails, another side is connected and supported by an end carriage travel on the overhead track. Compare to the standard gantry crane, it will save one side support gantry leg, not only reduce the cost, also can expand crane effective work space in some limited workshops. The crane is suitable for indoor and outdoor use, under the lifting hook, there are different lifting tools to choose, such as grab bucket, electromagnet and other lifting tools.







Standard Warranty Policy  - Download



*Valid for all brand new cranes which designed, manufactured and supplied by stonimage.



Project Flowchart-standard
